Product Description:

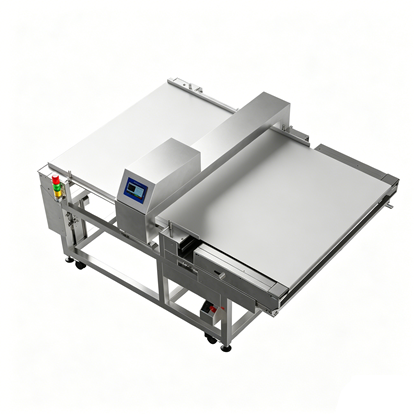

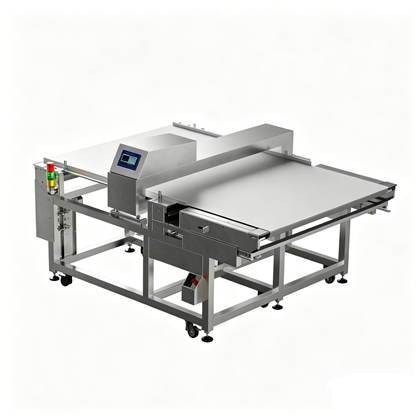

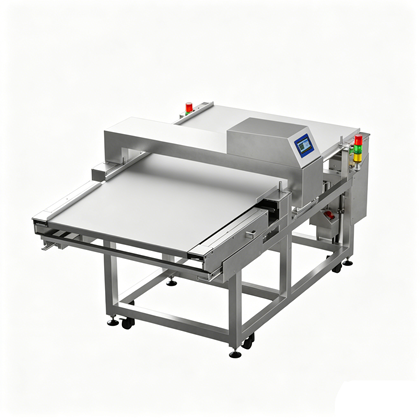

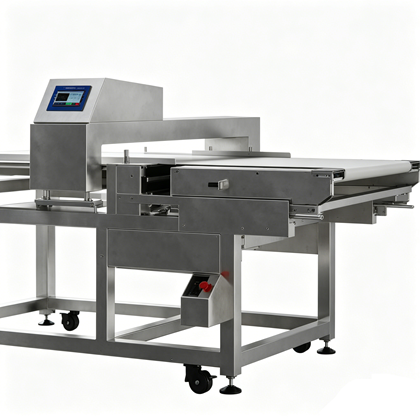

Designed for extra-wide product streams, this metal detector features a high-sensitivity detection head and a ultra-wide conveyor belt to inspect bulk or flat products efficiently. It delivers reliable rejection of ferrous, non-ferrous, and stainless steel contaminants, with an intuitive interface and robust construction for 24/7 industrial environments.
Applications (Ideal for):
Textile & non-woven fabric inspection
Wide frozen food or bakery products
Package products
Bulk pharmaceutical or chemical powders on wide belts
Specifications：
| Foodman Model | FMD-70 | FMD-80 | FMD-100 | FMD-120 | Custom unconventional models available |
| By Width(mm) | 700 | 800 | 1000 | 1200 | Customizable Width |
| By Height(mm) | 50-200mm | ||||
| Body Length | 1800-2000mm(Customized dimensions are subject to the actual product size) | ||||
| Working Speed | 5-30m/min(Adjustable) | ||||
| Sensitivity(W/O Product)(mm) |
50 |
50 |
100 |
100 |
150 200 |
| FE | 0.6 | 0.6 | 0.8 | 0.8 | 1.2 1.5 |
| NFE | 1.2 | 1.2 | 1.5 | 1.5 | 2.0 2.5 |
| SUS304 | 1.8 | 1.8 | 2.0 | 2.0 | 3.0 3.5 |
| Operation | 7 Inch Touch Screen | ||||
| Power Supply | AC220V±10% 50Hz（60Hz） | ||||
| Alarm | Audible and visual alarm | ||||
| Rejector | Multi-Rejector Optional | ||||
| IP Rate | IP54 | ||||
| Operating Environment | Temperature: 0℃～40℃, Humidity: 30%～95% | ||||
| Main Body Material | SUS304 Stainless Steel | ||||
