Product Details

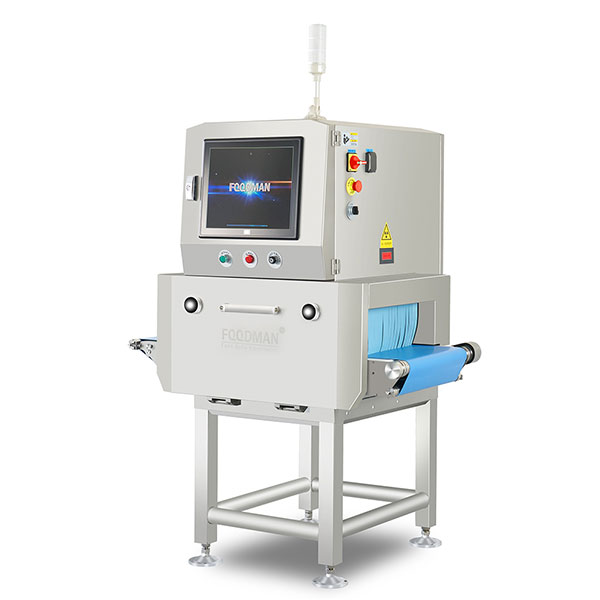

Food X-ray inspection system use penetration to select contaminants like bones, plastics and other hard metals in high accuracy and high stability to improve the quality of finished products.
1. Auto-analysis, autosave pictures of inspection
2. Safe and reliable: X-Ray leakage is minor than 1μ Sv/hour, complying with FDA and CE standards. Radiation less than 1 Gy. Designed a complete shielded structure.
3. Comprehensive software support, Ensuring the best sensitivity with better shielding function.
4. Intuitive operation interface: 17 inches full-color touch screen, easy to use.
5. Easy cleaning and maintenance: Detachable structure makes cleaning easy. Waterproof construction.
Specifications
| Brand: Foodman | Model: FXR-4017K100 | X-Ray Tube: 150W 100kV, 210W 100kV |
| Window of Inspection Conveyor: 400mm W x 170mm H | Stainless steel ball: φ0.3mm | Stainless steel wire: φ0.2 *2mm (L) |

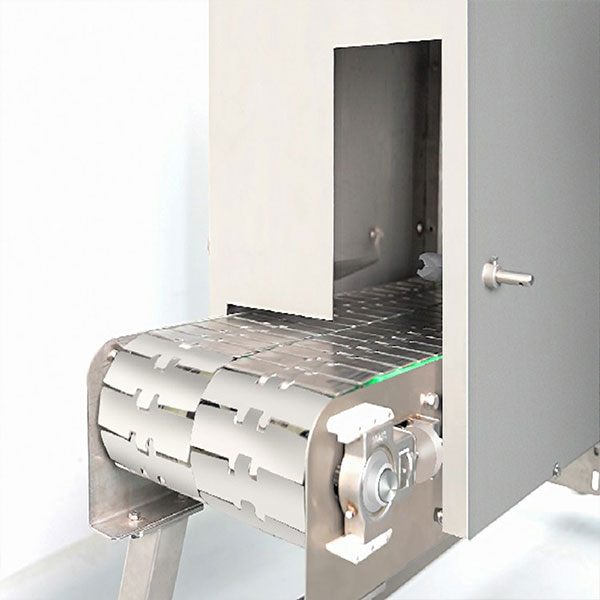

| Ceramic ball: φ1.0mm | Glass ball: φ1.0mm | Conveyor Speed: 10-70m/min |

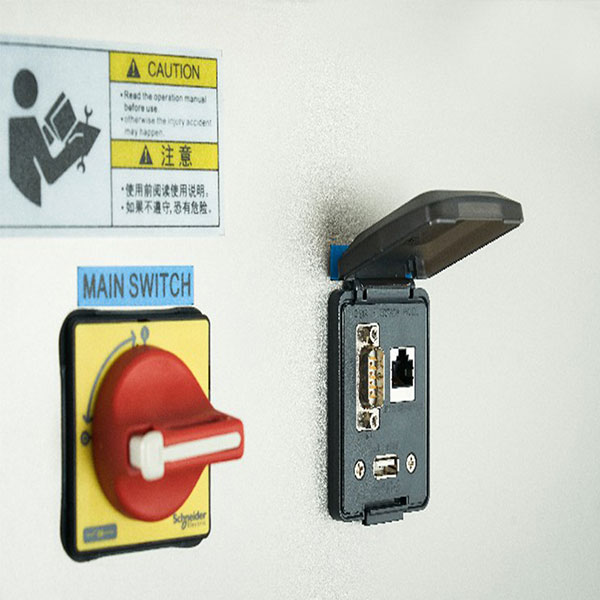

| Display: 17 inches full color touch screen | Data interface: LAN Port, USB Port | Working Temperature: -10℃-40℃(with on-board air conditioner) |
| Humidity: 30%-90% (Equipped with dehumidifier) | X-Ray Emission: ＜1μSv per hour | Protection: Soft Curtain（detachable） |

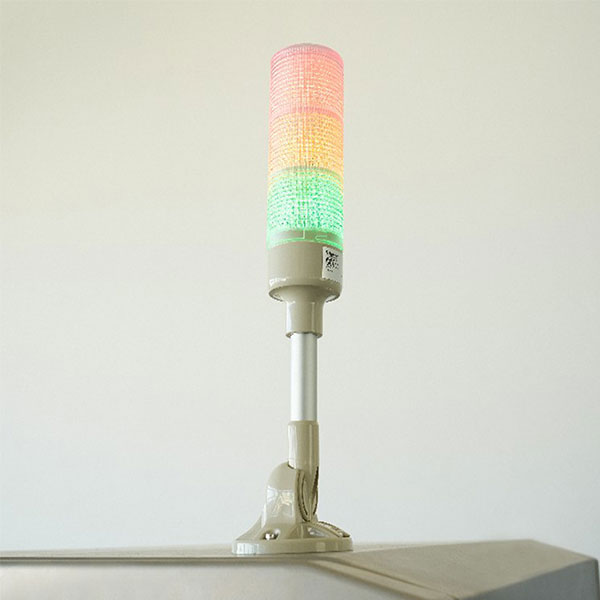

| Reaction to defectives: Sound and indicator, Belt stops, rejector optional | Power: AC220V ±10% 50/60Hz, 1.5kw Max (Adjustable) | Waterproof: IP66 for detecting tunnel, IP54 for rest of body |
| Body Construction: Stainless steel 304 | Product Weight: Standard5KG（on Conveyor） (Adjustable) |
